Description
Argument
Products Description
Product Description
1) Material: Q235 welded pipes
2) Surface Treatment: Painted / Powder coated / Pre-galvanized / Electro-galvanized/ Hot dip galvanized
3) Type: Spanish prop, Italian prop and Middle east prop.
4) Nut Type: Cup Nut / Normal Nut.
5) Base Plate: Flower plate/ Square plate /U-head plate.
6) Lock Pin: G pin / Rope pin / Chain pin
7) Tube Diameter: Inner Tube: 40mm/48mm/56mm; Outer tube:48mm/56mm/60mm.
8) Tube Thickness: 1.5-4.0mm.
9) Length: 1.8-5.0m.
10) Package: by bundle or in loose or as your request.
11) Certificate: SGS/ISO
12) Sample: available
Heavy Duty Prop(With Normal Nut)
|
Min
|
Max
|
Inner Tube
|
Outer Tube
|
|
1.8
|
3.2
|
48*2.0mm
|
60*2.0mm
|
|
2
|
3.6
|
48*2.0mm
|
60*2.0mm
|
|
2.2
|
3.9
|
48*2.0mm
|
60*2.0mm
|
|
2.5
|
4.5
|
48*2.0mm
|
60*2.0mm
|
|
3
|
5.5
|
48*2.0mm
|
60*2.0mm
|

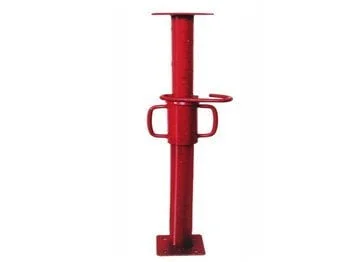

Light Type Prop(With Cup Nut).
|
Min
|
Max
|
Inner Tube
|
Outer Tube
|
|
1.7mm
|
3.0mm
|
40*2.0mm
|
48*2.0mm
|
|
40*2.0mm
|
56*2.0mm
|
||
|
1.8mm
|
3.2mm
|
40*2.0mm
|
48*2.0mm
|
|
40*2.0mm
|
56*2.0mm
|
||
|
2.0mm
|
3.5mm
|
40*2.0mm
|
48*2.0mm
|
|
40*2.0mm
|
56*2.0mm
|
|
Description
|
Length(m)
|
External Tube (mm)
|
Internal Tube (mm)
|
Weight (kgs)
|
|
|
Spanish
Props |
0.8-1.4
|
48*1.6*765
|
40*1.8*835
|
||
|
1.6-3.0
|
48*1.6*1600
|
40*1.8*1600
|
7.05
|
||
|
2.0-3.5
|
48*1.6*1716
|
40*1.8*2000
|
|||
|
2.2-4.0
|
48*1.6*2000
|
40*1.8*2000
|
|||
|
Italian
Props |
1.6-2.9
|
56*1.6*1524
|
48*1.8*1600
|
8.81
|
|
|
1.8-3.1
|
56*1.6*1524
|
48*1.8*1800
|
9.21
|
||
|
2.0-3.6
|
56*1.6*1750
|
48*1.8*2000
|
10.2
|
||
|
2.2-4.0
|
56*1.6*2024
|
48*1.8*2200
|
11.05
|
||
|
German
Props |
1.4-2.7
|
60*2.85*1396
|
48*3.2*1400
|
14.5
|
|
|
1.6-2.7
|
60*2.7*1550
|
48*3.2*1600
|
13.1
|
||
|
1.62-2.64
|
60*2*1396
|
48*3.2*1610
|
10.5
|
||
|
2.0-3.5
|
60*2.85*1900
|
48*3.2*2000
|
16.1
|
||
|
2.2-4.0
|
60*3*1900
|
48*3.2*2200
|
19.27
|
||
|
3.0-5.5
|
60*3.2*2680
|
48*3.2*2900
|
27.36
|
Detailed Images

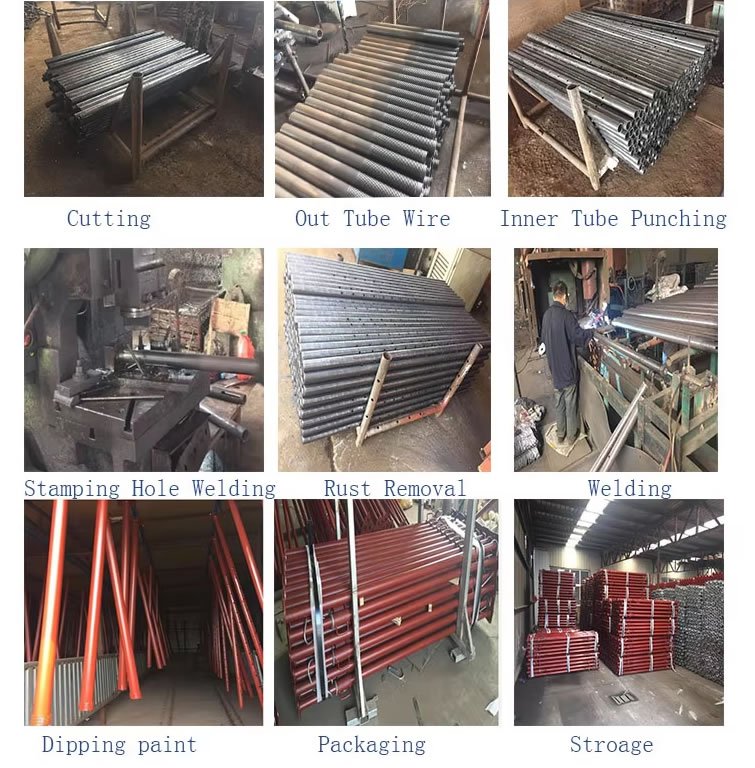

Production Process
Packing&Shipping
Tags:
Technical parameter
Cutting the Shuttering Props’ Pipe
Welding The Shuttering Props’ Plate
Powder Coating For Shuttering Props
Shoring Props For Sale In Loading
Shuttering Props Production Processes
