Products Description
Experienced Adjustable Steel Prop Manufacturer
|
Product
|
Scaffolding Adjustable Props / Steel Props
|
|
Material
|
Q235,Q345,S235 Carbon Steel
|
|
Type
|
Light Duty Props, Middle Duty Props, Heavy Duty Props
|
|
Outer OD
|
60.30mm
|
|
Inner OD
|
48.3
|
|
Tube
|
48mm,56mm,60mm
|
|
Wall Thickness
|
1.6mm, 1.8mm
|
|
Color
|
Silver or as customer’s request
|
|
Finish
|
Painted, Powder Painted, Electro Galvanized, Hot dipped Galvanized
|
|
Certificate
|
SGS ,CE,ISO
|
|
Bearing Capacity
|
10-30KN
|
|
Size
|
Custom design or relugar sizes
|
|
Service
|
OEM Service available
|
|
Delivery Time
|
About 15 days after confirmation
|
|
Packing
|
in bulk or steel pallet or as your request
|
|
production capability
|
100 tons per day
|
|
Manufactory Location
|
Tianjin, China
|
Product Specifications Of Scaffolding Adjustable Steel Props
|
LIGHT DUTY PROPS
|
||||
|
Adjustable Heightht
|
Outter Tube
|
Inner Tube
|
Top and Base Plates
|
Weight(+/-3%)
|
|
600-1100mm
|
48*1.5mm
|
40*1.5mm
|
120*120*4.0mm
|
3.8kg/PC
|
|
900-1400mm
|
48*1.5mm
|
40*1.5mm
|
120*120*4.0mm
|
4.23kg/PC
|
|
1200-1700mm
|
48*1.5mm
|
40*1.5mm
|
120*120*4.0mm
|
4.66kg/PC
|
|
1600-3000mm
|
48*1.6mm
|
40*1.6mm
|
120*120*4.0mm
|
7.10kg/PC
|
|
1800-3200mm
|
48*1.6mm
|
40*1.6mm
|
120*120*4.0mm
|
7.40kg/PC
|
|
2000-3500mm
|
48*1.8mm
|
40*1.8mm
|
120*120*4.0mm
|
8.60kg/PC
|
|
MIDDLE DUTY PROPS
|
||||
|
Adjustable Heightht
|
Outter Tube
|
Inner Tube
|
Top and Base Plates
|
Weight(+/-3%)
|
|
1800-3200mm
|
56*1.8mm
|
48*1.8mm
|
120*120*4.5mm
|
9.68kg/PC
|
|
2000-3500mm
|
16*1.8mm
|
48*1.8mm
|
120*120*4.5mm
|
10.33kg/PC
|
|
2000-3600mm
|
56*1.8mm
|
48*1.8mm
|
120*120*4.5mm
|
10.57kg/PC
|
|
2200-4000mm
|
56*2.0mm
|
48*2.0mm
|
120*120*4.5mm
|
12.44kg/PC
|
|
HEAVY DUTY PROPS
|
||||
|
Adjustable Heightht
|
Outter Tube
|
Inner Tube
|
Top and Base Plates
|
Weight(+/-3%)
|
|
2000-3600
|
60*2.0
|
48*2.0
|
120*120*5.0
|
11.71kg/PC
|
|
2200-3900
|
60*2.0
|
48*2.0
|
120*120*5.0
|
12.45kg/PC
|
|
2200-4000
|
60*2.0
|
48*2.0
|
120*120*5.0
|
12.74kg/PC
|
|
2400-3900
|
60*2.0
|
48*2.0
|
120*120*5.0
|
12.33kg/PC
|
|
2400-4000
|
60*2.0
|
48*2.0
|
120*120*5.0
|
12.62kg/PC
|
|
3000-5500
|
60*2.0
|
48*3.0
|
120*120*5.0
|
23.60kg/PC
|
|
3300-6000
|
60*2.0
|
48*3.0
|
120*120*5.0
|
25.50kg/PC
|
|
TRIANGLE PROPS
|
||||
|
Adjustable Heightht
|
Outter Tube
|
Inner Tube
|
Top and Base Plates
|
Weight(+/-3%)
|
|
700-1000
|
48.3*3.25
|
OD:32
|
170*70*8.0
|
8.64kg/PC
|
|
900-1200
|
48.3*3.25
|
OD:32
|
170*70*8.0
|
9.35kg/PC
|
|
1700-2000
|
48.3*3.25
|
OD:32
|
170*70*8.0
|
12.22kg/PC
|
|
2000-2300
|
48.3*3.25
|
OD:32
|
170*70*8.0
|
13.3kg/PC
|
|
2200-2500
|
48.3*3.25
|
OD:32
|
170*70*8.0
|
14.02kg/PC
|
|
2500-2800
|
48.3*3.25
|
OD:32
|
170*70*8.0
|
15.4kg/PC
|
|
3000-3300
|
48.3*3.25
|
OD:32
|
170*70*8.0
|
17.3kg/PC
|

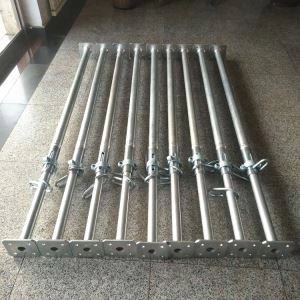

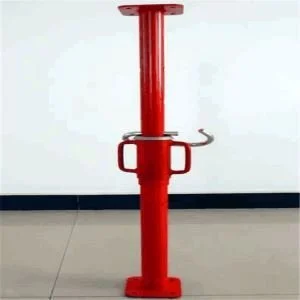

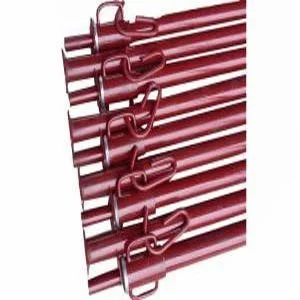

Product Details
Production Process

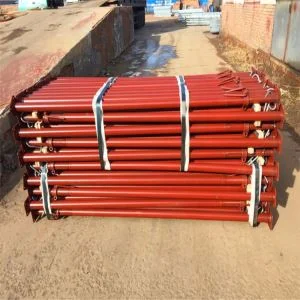

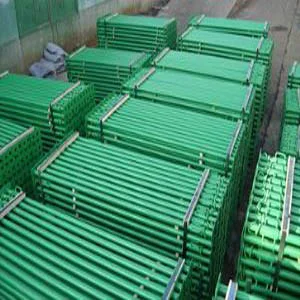

Packing&Shipping Of Scaffolding Adjustable Steel Props
