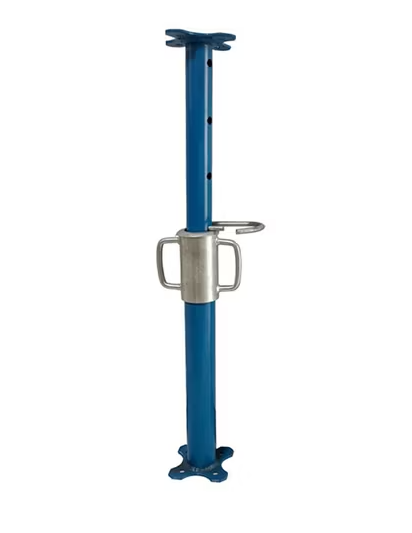

Light Duty Steel Prop

Light Duty Steel Prop

Spanish and Italian-style steel props are lightweight, adjustable steel prop frames used in construction. They are typically powder-coated for high durability and corrosion resistance. These props are suitable for various construction projects, playing a crucial supporting role, especially in scaffolding construction.
1.Cost-effective
2.Lightweight and Flexible
3.Safe and Reliable
4.Durable and Versatile

Description
Argument
Products Description

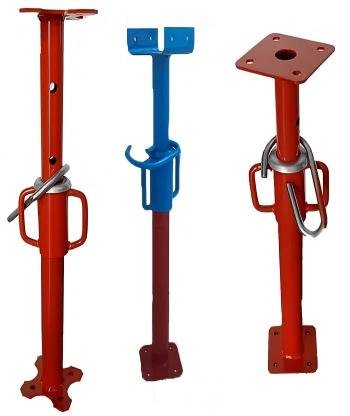

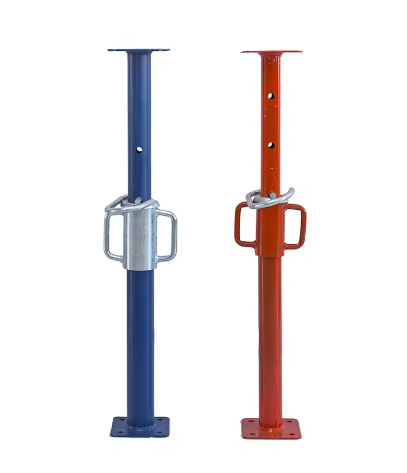

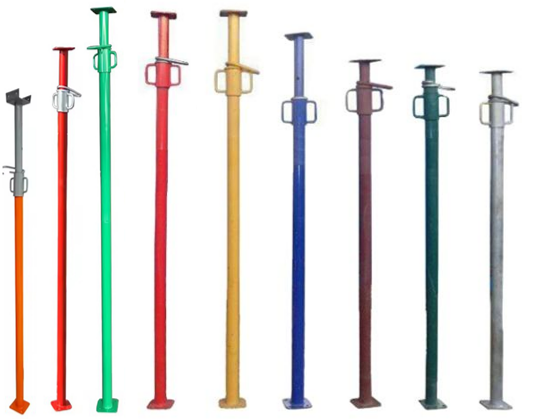

Light Duty Steel Prop Introduction Prop

1.Introduction

Spain type

Spanish steel props are a core load-bearing component in construction formwork and scaffolding systems, specifically designed for efficient and flexible support of concrete pouring formwork.

Italian type

Italian-style adjustable props are core temporary support components used in construction to support formwork and concrete structures. They are manufactured from low-carbon steel (such as Q235 steel) and offer stable performance. Structurally, they typically consist of a top plate, base plate, outer tube, inner tube, nut, and pin, allowing for flexible adjustment from 1.6 meters to 4.0 meters through the extension and retraction of the inner tube.







2.Detailed Specifications



Spanish  steel prop
Min height Max Height Inner Tube Outer Tube Tube Thk
1600mm 2900mm 40mm 48mm 1.6-4mm
1800mm 3200mm 40mm 48mm 1.6-4mm
2000mm 3500mm 40mm 48mm 1.6-4mm
2200mm 4000mm 40mm 48mm 1.6-4mm
3000mm 5000mm 40mm 48mm 1.6-4mm
Surface treatment:Pre Galvanized /Hot dip Galvanized, powder coated,painted



Italian steel prop
Min height Max Height Inner Tube Outer Tube Tube Thk
1600mm 2900mm 48mm 56mm 1.6-4mm
1800mm 3200mm 48mm 56mm 1.6-4mm
2000mm 3500mm 48mm 56mm 1.6-4mm
2200mm 4000mm 48mm 56mm 1.6-4mm
3000mm 5000mm 48mm 56mm 1.6-4mm
Surface treatment:Pre Galvanized /Hot dip Galvanized, powder coated,painted

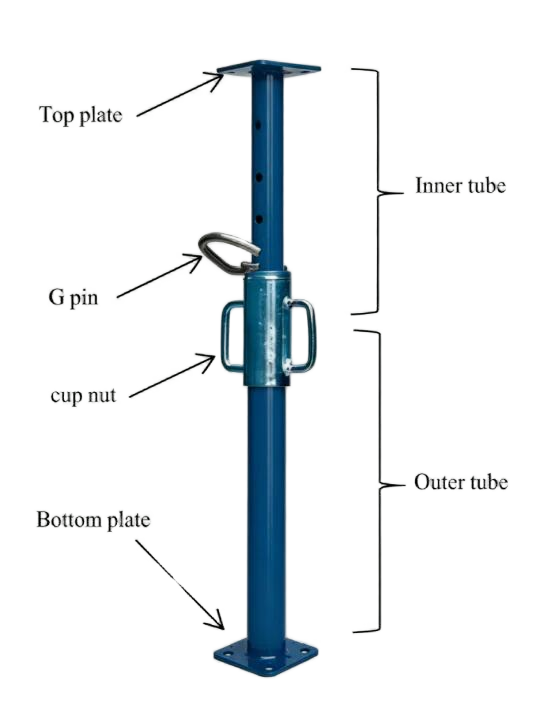

3.One complete set of light steel prop







4.Advantages of  light duty steel Prop



Cost-effective: While meeting most conventional construction load requirements, it uses less material, resulting in lower initial purchase and transportation costs compared to heavier Italian-style props, making it an economical and efficient choice.
Lightweight and Flexible: Compared to props with larger diameters, Spanish-style props are lighter, making them easier to handle and install. Their wide adjustment range allows for quick adaptation to different floor heights and construction conditions.
Safe and Reliable: Made with high-quality steel and standardized production, ensuring reliable load-bearing capacity. Adjustment and locking are simple and secure through pin holes or threaded connections.
Durable: Especially the hot-dip galvanized props, which offer excellent corrosion and rust resistance, can be reused hundreds of times, resulting in a long service life and low maintenance costs.
Versatile: Widely used for supporting floor slabs, beams, and wall formwork in residential and commercial buildings, as well as in bridge engineering and indoor and outdoor repair and reinforcement projects.





5.Assembly video





Producion video

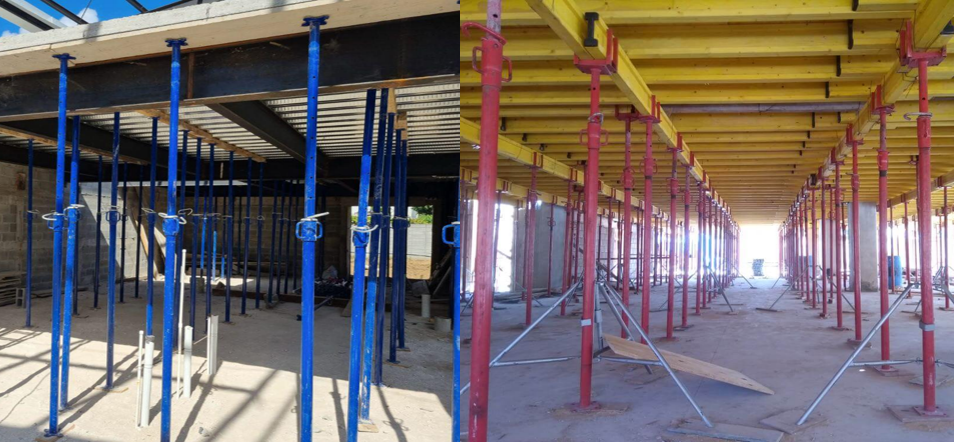

6.Application

Steel prop can be widely used in the pouring process of concrete slabs, beams, and columns, providing reliable temporary vertical support for the formwork system and ensuring stability before the structure hardens.

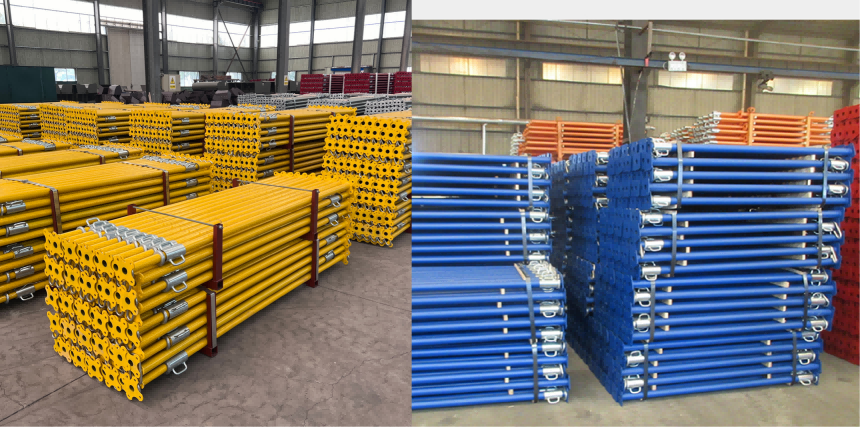

7.Package & Shipping

We bundle steel props in heavy‑duty steel‑strapped packs (typically 50 units/pack), wrapped in waterproof film to resist moisture and dust.

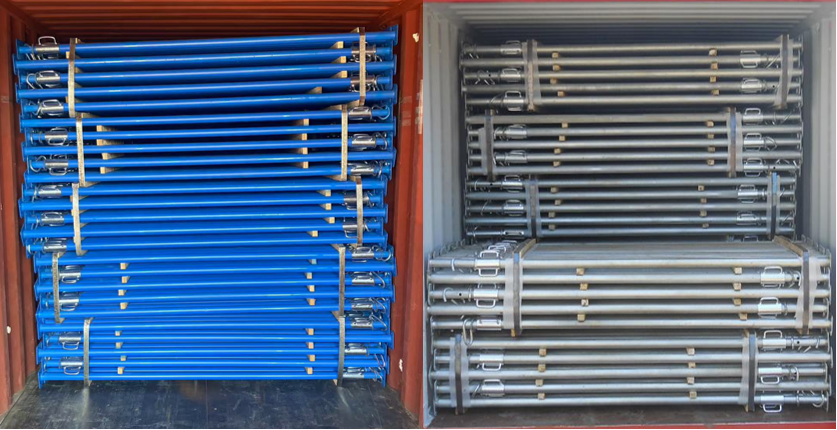

Our steel props are systematically packed into standard shipping containers (20GP/40HQ) to maximize space and secure every piece during long-distance transit. Each bundle is steel-strapped and palletized for smooth forklift handling at both loading and destination ports.

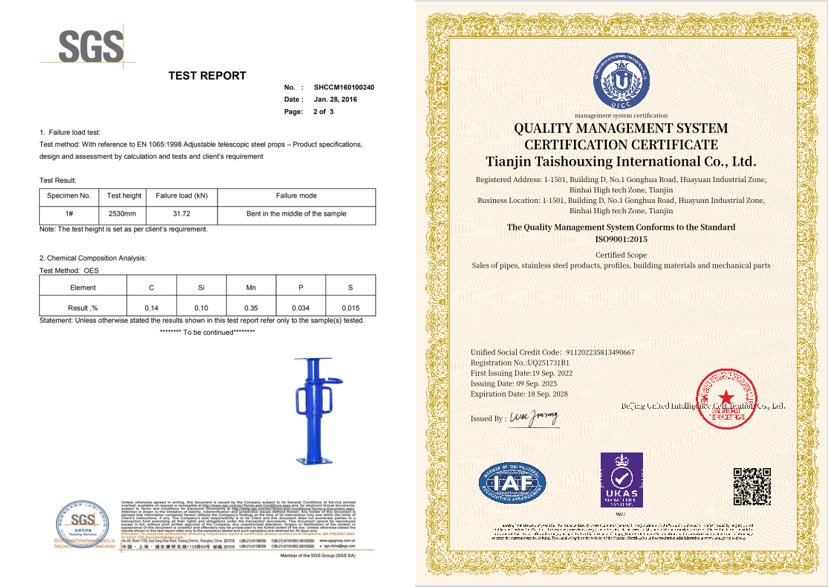

8.Test Report





9.Exhibitions and clients

Find Us at Global Trade Shows – Let’s Build Solutions Together





We welcome clients from around the world to visit our production facility and witness firsthand how we craft our steel prop systems and formwork solutions.






10.FAQ



Q1:Where is your factory located?

A1:Our main production base is located in Tianjin, China, with convenient transportation, which greatly ensures logistics efficiency and cost advantages.



Q2:Are you a trading company or a factory?

A2:We are a manufacturer with our own factory. This means we have complete control over the entire process, from raw material procurement and production to quality inspection, ensuring stable product quality, on-time delivery, and competitive pricing.



Q3:What are the key quality standards and certifications for your products?

A3:Our light steel supports strictly adhere to international standards. Our main products are certified by authoritative organizations such as CE and ISO 9001. We use high-standard steel and implement a comprehensive in-house inspection system.



Q4:What are the main advantages of your light steel prop?

A4:Our core advantage is “high strength and lightweight.” While ensuring load-bearing safety, we optimize the structural design to reduce the product’s weight, thereby reducing construction labor intensity and transportation costs, and improving erection efficiency.



Q5:How do you guarantee product consistency and durability?

A5:We use automated production lines to ensure processing accuracy, and all finished products undergo galvanizing or other surface anti-corrosion treatments to ensure the service life and appearance consistency of the products in complex environments.



Q6:What is the delivery time for standard products?

A6:The general production cycle is 4 to 6 weeks, depending on the order quantity.



Q7:What are the main factors affecting delivery time?

A7:The main factors include: total order quantity, whether the product is a special customized specification, and seasonal logistics peaks (such as before Chinese New Year and National Day holidays). We will communicate transparently with you in advance about any factors that may affect the delivery time.



Q8:What are your commonly used transportation methods?

A8:We flexibly arrange full container load (FCL), less than container load (LCL) sea freight, or air freight based on the volume of goods and your requirements. Our network of freight forwarders provides competitive freight rates and reliable services.



Q9:Do you accept product customization?

A9:Yes. We provide OEM/ODM services and can customize specific lengths, connection methods, or load-bearing specifications according to your project drawings or specific requirements. Please provide detailed technical parameters for our evaluation.



Q10:What are your payment methods and after-sales services?

A10:We support mainstream payment methods such as T/T and Letter of Credit (L/C). We provide comprehensive after-sales service, including technical consultation and product usage guidance, and we guarantee to take full responsibility for any confirmed quality issues.
