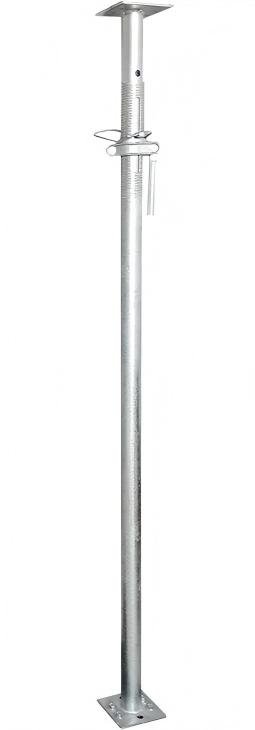

Heavy Duty Middle East Type Adjustable Steel Acrow Prop





1.Product Details



Heavy-duty steel prop, commonly specified as an Adjustable Steel Acrow Prop, is a robust structural component designed to provide temporary vertical bracing in construction, bridge, or tunnel works, preventing structural deformation or collapse.

Fabricated from high-strength steel, it features simplified installation, reliable stability, and ensures enhanced site safety and schedule compliance.











2.Adjustable Steel Acrow Prop Standard Size



Min Height	Max Height	Inner Tube	Outer Tube	Tube Thickness
1.6m	2.9m	48mm	60mm	1.6-4.0mm
1.8m	3.2m	48mm	60mm	1.6-4.0mm
2.0m	3.5m	48mm	60mm	1.6-4.0mm
2.0m	3.6m	48mm	60mm	1.6-4.0mm
2.2m	4.0m	48mm	60mm	1.6-4.0mm
3.0m	5.0m	48mm	60mm	1.6-4.0mm
3.5m	6.0m	48mm	60mm	1.6-4.0mm
Surface Treatment	Painted/Pre-galvanized/Powder Coated/Hot-dip Galvanized
Other Specifications Can Be Customized Upon Request





4 Types of Surface Treatment:



Surface Treatment	Key Features	Applicable	Actual Photos

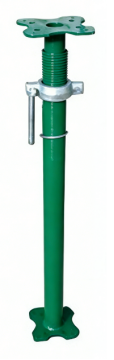

Painted (e.g., BS Green)	Economical, good visibility, basic rust protection,various color options	Indoor or short‑term projects General construction Roff project
Pre-galvanized	Silver appearance, basic corrosion resistance	Mild environments Interior storage Non-coastal applications

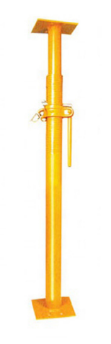

Powder Coated	Smooth and bright surface, corrosion and UV resistant, various color options	Architectural projects Visible temporary structures Moderate outdoor use

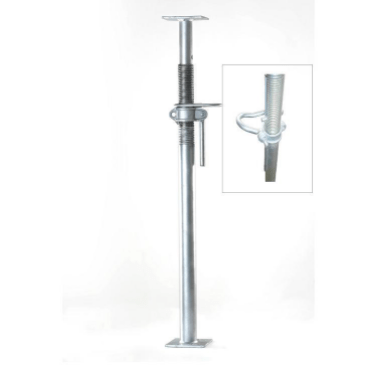

Hot-dip Galvanized (e.g., Australian HDG)	Thick zinc layer, excellent corrosion and abrasion resistance	Coastal, high-humidity Chemical exposure Long-term/rental use Infrastructure





3.Accessories

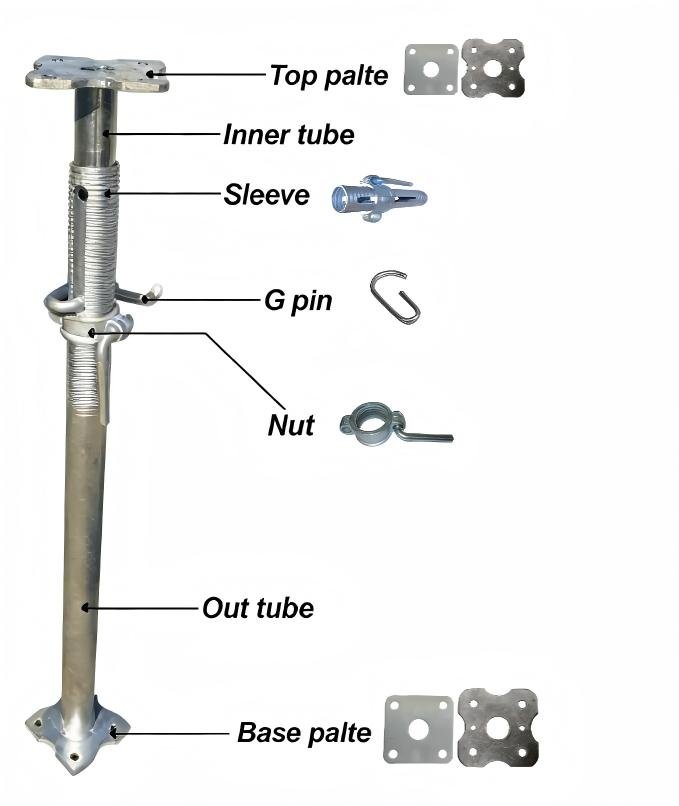

This image shows a detailed view of the various parts and components of the Adjustable Steel Acrow Prop.









Steel Shoring Props and H-Shaped Timber Beam System





4.Advantages of Steel Acrow Prop



High Load Capacity & Strength

It provides robust temporary vertical support for heavy structural loads in construction, ensuring safety and stability.

Adjustable & Flexible

Its telescopic design allows quick and precise height adjustment to fit varying site requirements, enhancing installation efficiency.

Durability & Long Service Life

Made of high-strength steel with protective coating, it resists corrosion and wear, suitable for repeated use in harsh environments.

Easy to Install & Handle

Lightweight yet strong components enable simple assembly and disassembly by a small crew, reducing labor time and cost.





5.Assembly Video of Steel Acrow Prop

This video will visually demonstrate the quick assembly steps of the Steel Acrow Prop, helping you complete on-site installation safely and efficiently.









6. Production Process Video of Steel Acrow Prop

This video provides a transparent and authentic demonstration of the production process of Steel Acrow Props, clearly showcasing each assembly step.

Welcome to schedule a factory visit at any time to witness the quality details at every step.









7.Application Scenarios of Steel Acrow Prop

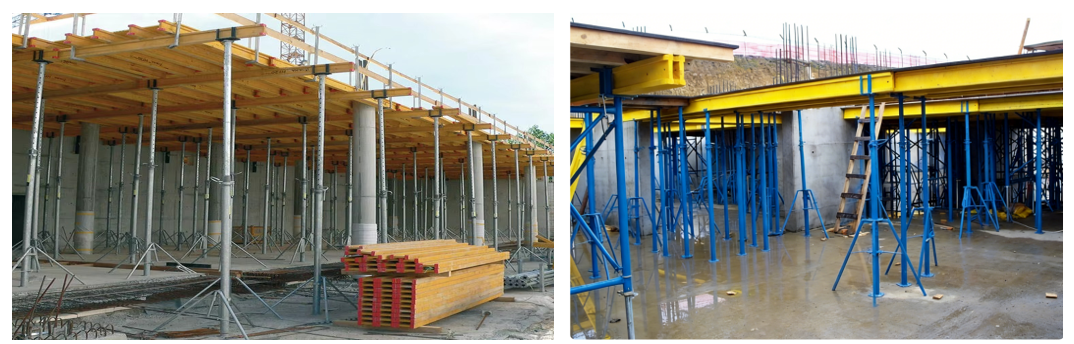

Construction and Formwork Support

Widely used in concrete slab, beam, and column pouring to provide reliable temporary vertical support for formwork systems, ensuring stability before structural hardening.

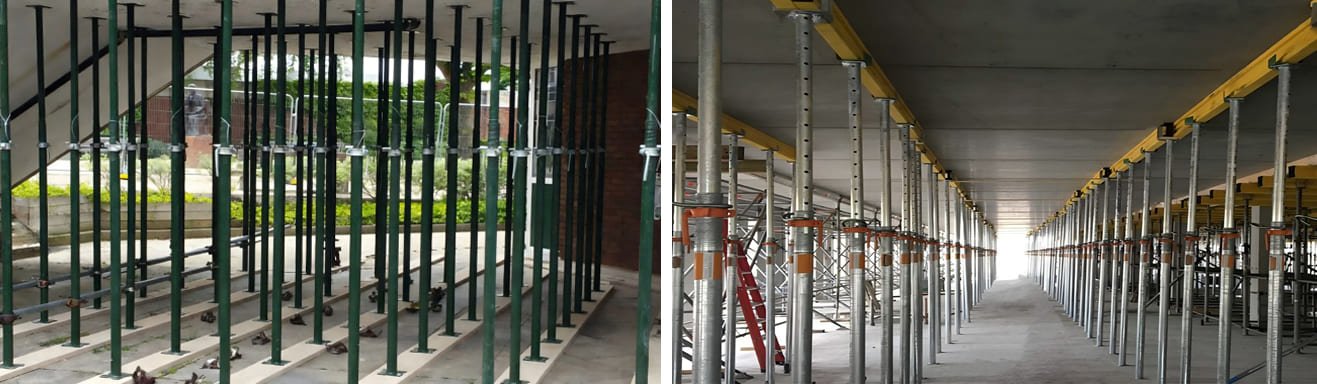

Wall reinforcement

During wall construction or repair, Acrow Props can be used to support part of the wall to prevent it from collapsing. This application scenario is common in the renovation, expansion and demolition of buildings to maintain the overall stability of the structure.

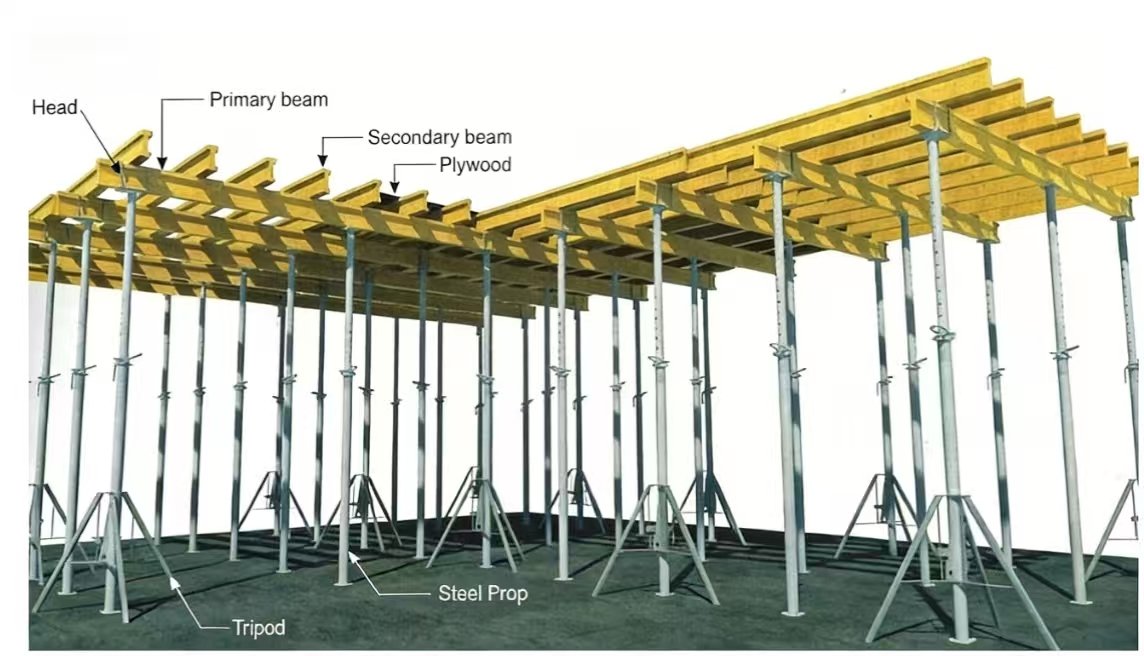

Use with Forkhead

Designed to pair with a forkhead attachment for stable support of beams or formwork.

This combination improves load distribution and adaptability in temporary structural applications.



Tunnel and Underground Excavation Support

In tunnel construction, mining, and underground engineering, steel props serve as critical temporary supports to stabilize excavation faces and surrounding rock. They are deployed rapidly to prevent collapse during drilling, blasting, or lining installation, ensuring worker safety and continuous progress in confined or hazardous environments.





8.Packing & Loading

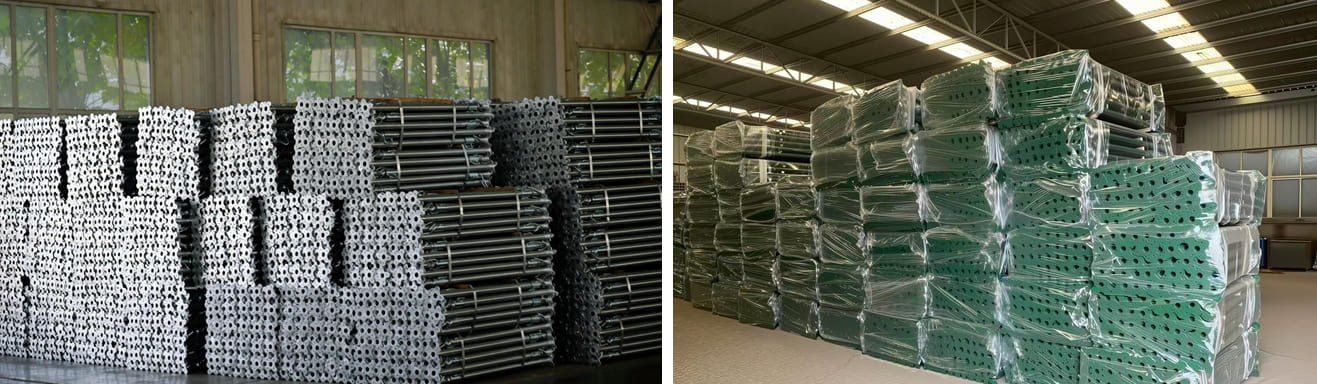

We bundle steel props in heavy‑duty steel‑strapped packs (typically 50 units/pack), wrapped in waterproof film to resist moisture and dust. Each pack is clearly labeled with product specs, quantity, and handling instructions for easy identification and on‑site handling.

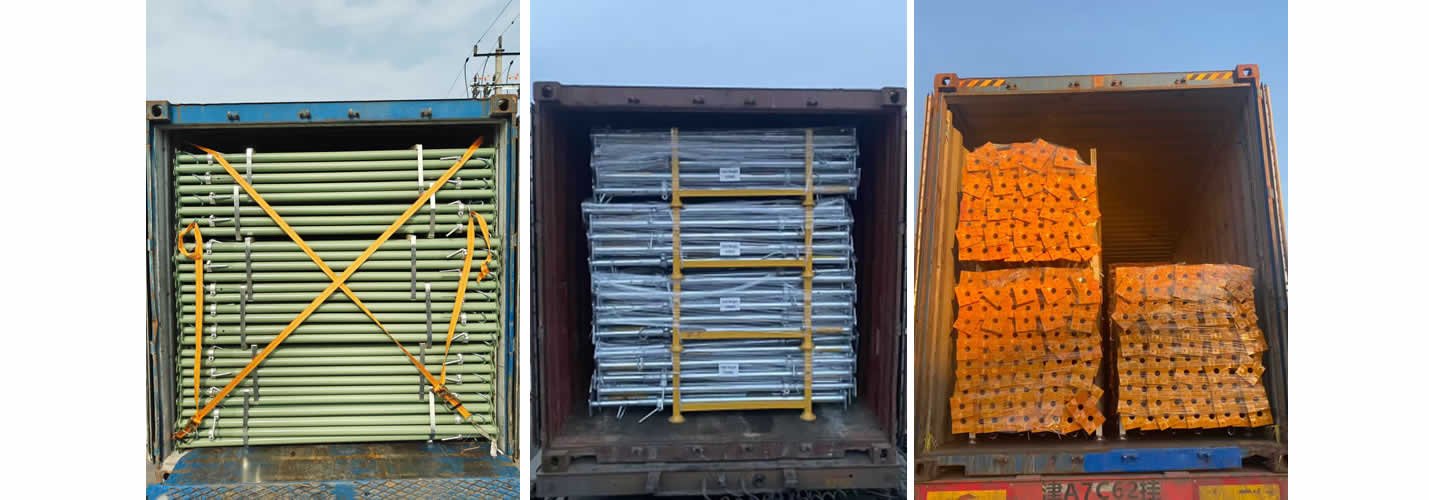

Our steel props are systematically packed into standard shipping containers (20GP/40HQ) to maximize space and secure every piece during long-distance transit. Each bundle is steel-strapped and palletized for smooth forklift handling at both loading and destination ports.

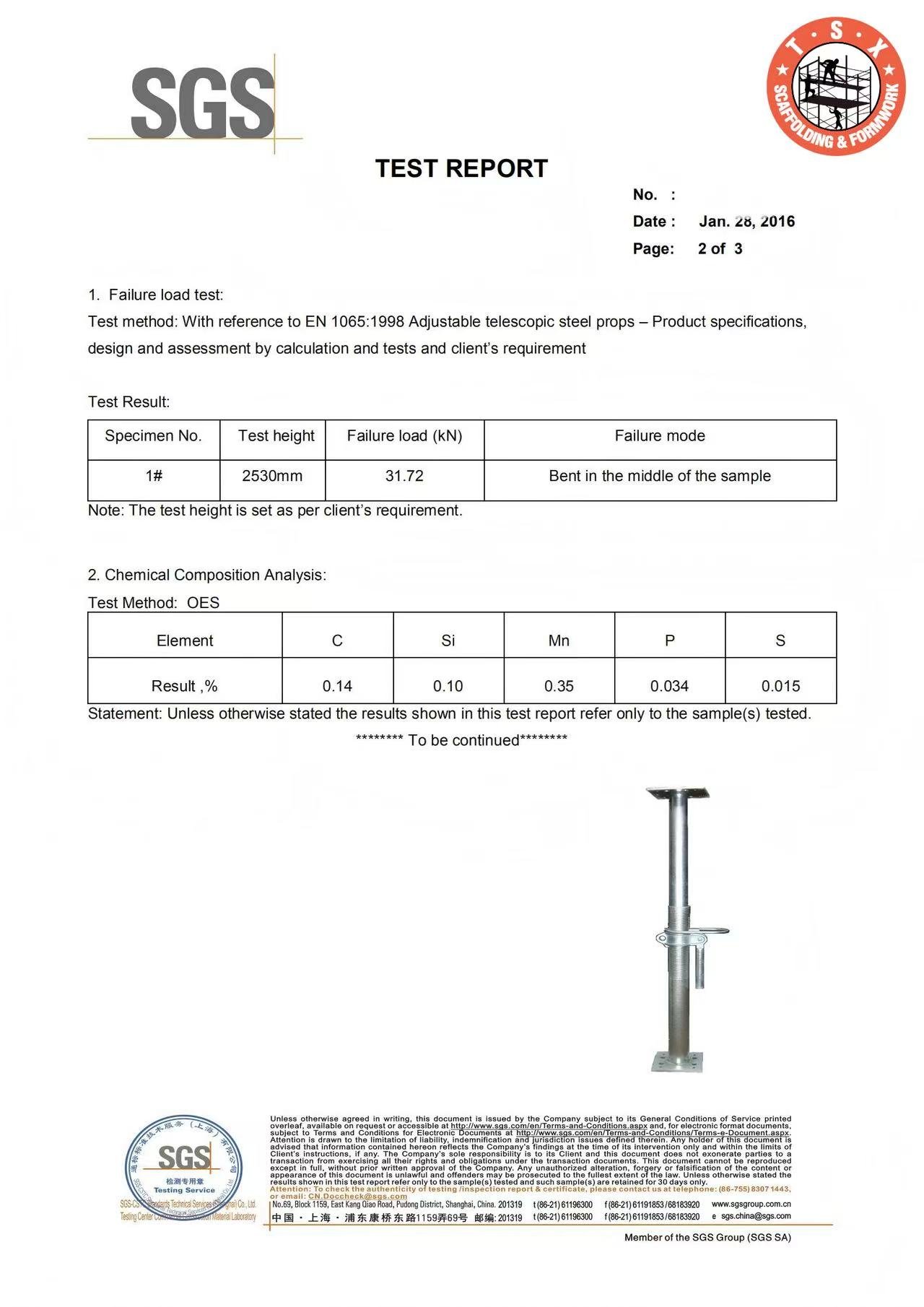

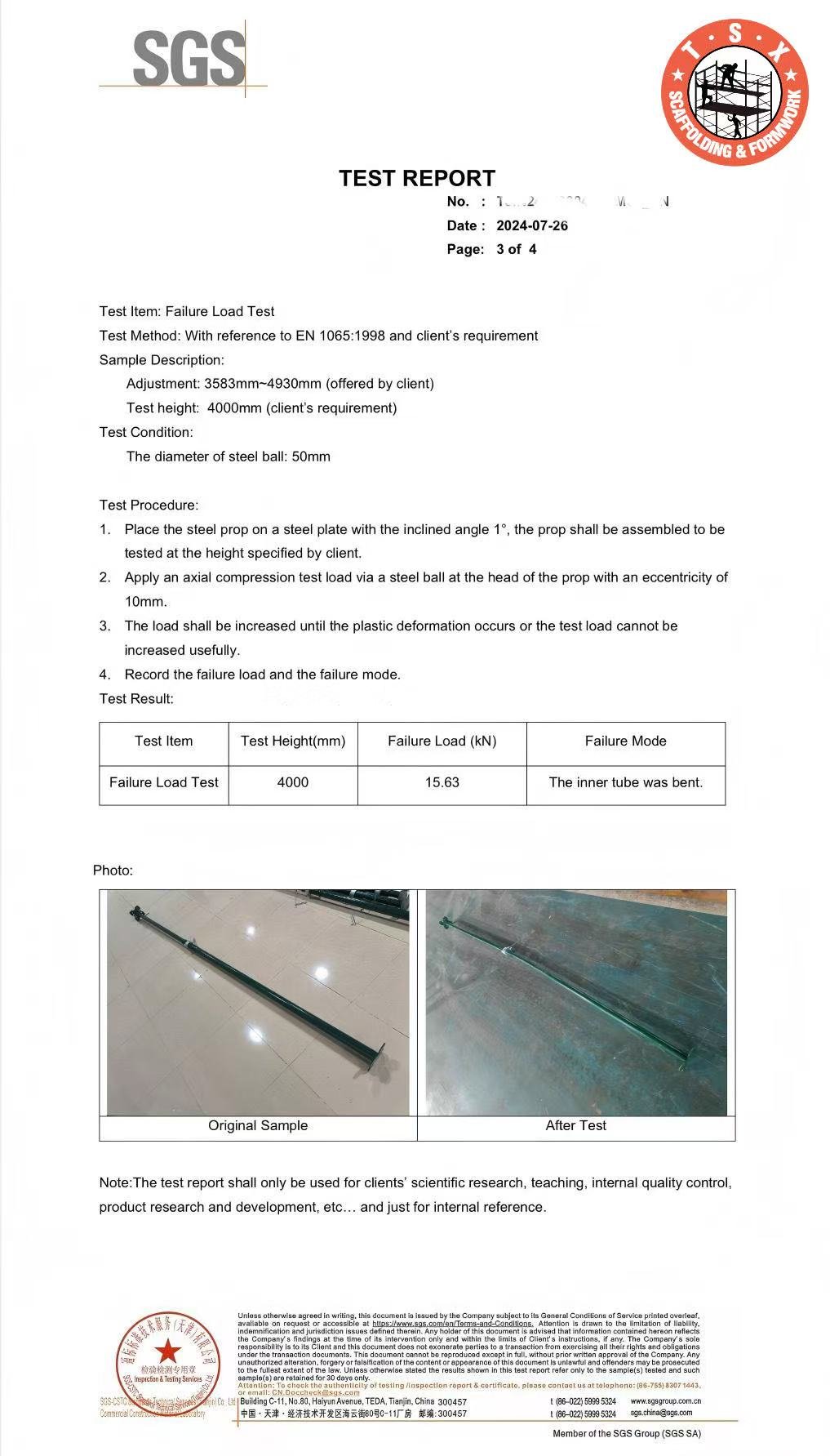

9. Test Report



10.Exhibitions and Customers



Find Us at Global Trade Shows – Let’s Build Solutions Together





We welcome clients from around the world to visit our production facility and witness firsthand how we craft our steel prop systems and formwork solutions.





FAQ



Q1: Can you supply props with different end fittings (U-head, fork-head, base plate or flower plate)?

A1:Yes, we can supply props with a range of end fittings including U‑head, fork‑head, base plate, and flower plate (also called swivel head or adjustable plate).

These can be provided as standard or customized based on your project requirements.



Q2:What are the key technical specifications to compare for Adjustable Steel Acrow Props?

A2:Key specs include load capacity (min. 10 kN), height range, material grade (Q235 steel), and galvanization thickness (≥8µm). These directly affect safety and longevity.



Q3:What is the average maintenance frequency for Adjustable Steel Acrow Props?

A3:Inspect every monthly cycle or after heavy use. Clean and check for wear every 6 months; replace damaged components immediately to prevent failure.



Q4: Do your props comply with international safety standards?

A4:Yes, our props are manufactured and tested in accordance with EN 1065 (EU), AS/NZS 1576 (Australia/New Zealand), and BS 4074 (UK) standards, with certification available upon request.



Q5: What is the packaging and delivery method for bulk orders?

A5:Props are bundled in steel-strapped packs (usually 50 pcs/pack) and loaded in 20GP or 40HQ containers. We provide customized packaging to prevent damage during transit.



Q6:Can I request samples before placing a bulk order?

A6:Yes, we can provide 1–2 sample props for evaluation. Freight charges may apply, but can be deducted from future bulk orders.



Q7:What is the typical lead time for a container load (20GP/40HQ)?

A7:Standard products: 25–35 days after deposit. Customized fittings may extend by 5–7 days.



Q8:How do I extend the service life of steel props?

A8:Avoid overloading, store in dry conditions, clean after use in corrosive environments (e.g., seawater), and conduct regular thread and pin inspections.



Q9:Do you provide assembly or installation guidance?

A9:Yes, we offer illustrated manuals, multilingual safety labels, and video tutorials. On-site training can be arranged for large projects.



Q10:What is your warranty policy?

A10:We provide a 12-month warranty against manufacturing defects. Damage due to improper use is not covered, but replacement parts are available at cost.



Q11:Can you supply props with non-standard colors or markings?

A11:Yes, we can paint props in custom colors (e.g., yellow for safety visibility) and laser-print client logos or safety warnings upon request.We also support custom logo design.
