Products Description

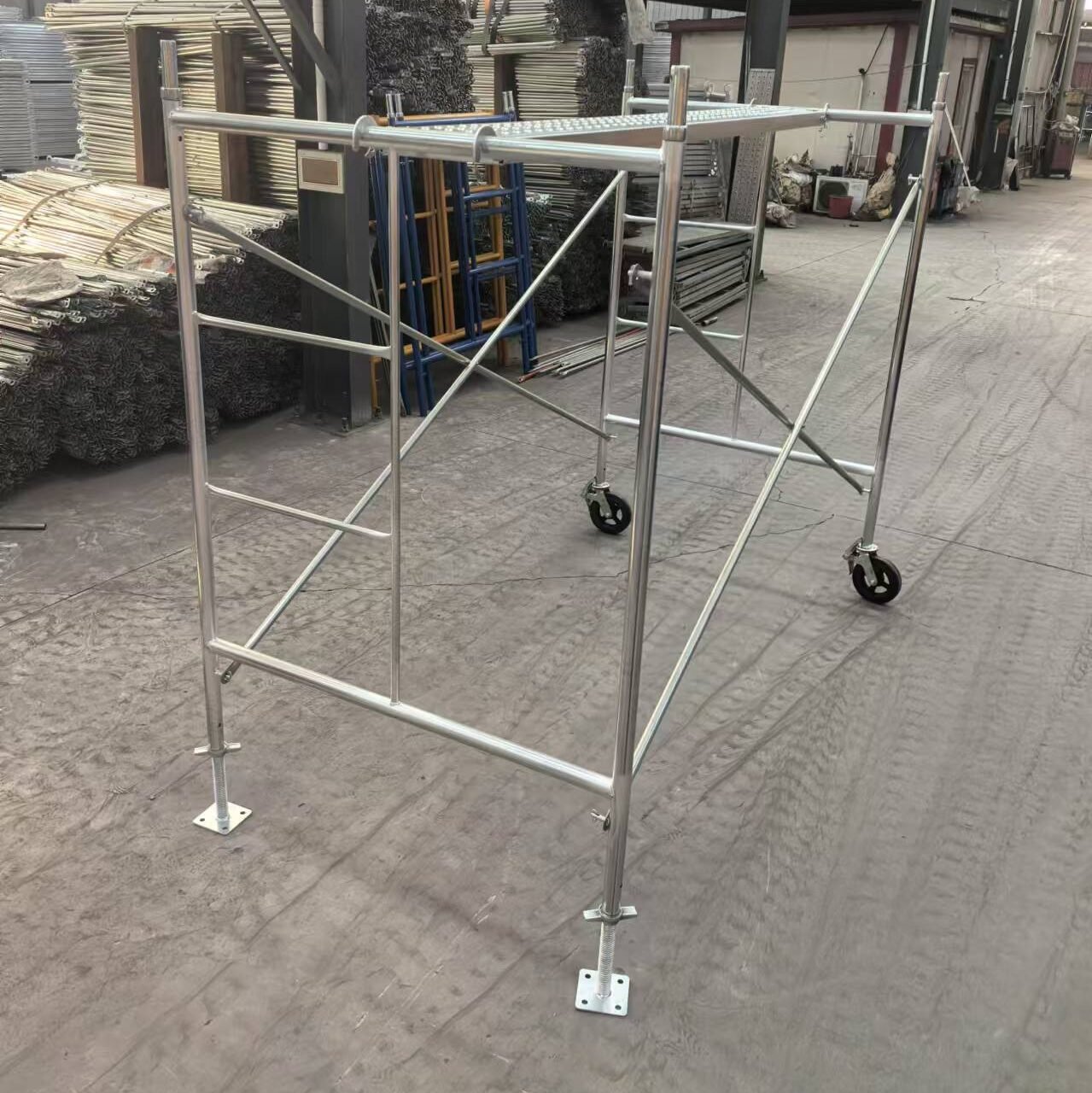

Ladder frame scaffolding
Framed scaffolding is a modular system renowned for its efficiency, safety, and versatility. Its prefabricated components allow for quick, straightforward assembly, saving significant time and labor on-site. The design provides a robust, stable platform with high load-bearing capacity and integrates seamlessly with essential safety features like guardrails and toe boards. Cost-effective due to its durability and reusability, it is the go-to solution for a vast range of construction, maintenance, and repair projects across residential, commercial, and industrial sectors.

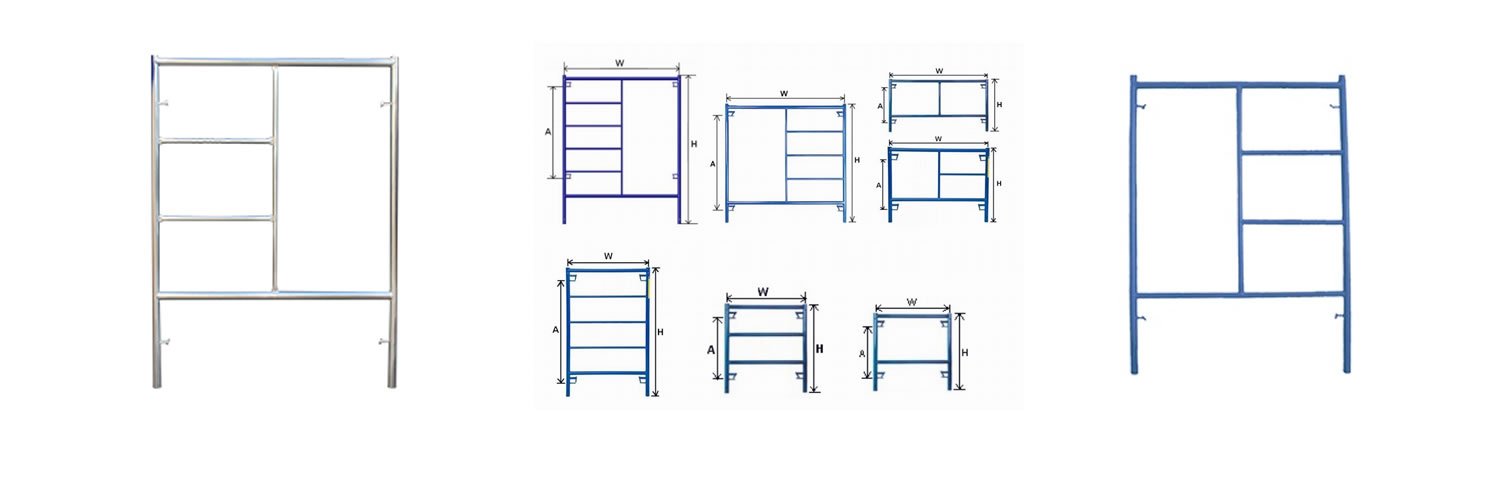

Specification
| Size | Width (W) | Height (H) | Surface Treatment |
| 5’x6’4″ | 1524mm (5′) | 1930mm (6’4″) | Galvanized/ Powder Coated |
| 5’x5′ | 1524mm (5′) | 1524mm (5′) | |
| 5’x4′ | 1524mm (5′) | 1219mm (4′) | |
| 5’x3′ | 1524mm (5′) | 914mm (3′) | |
| 4’x5′ | 1219mm (4′) | 1524mm (5′) | |
| 4’x4′ | 1219mm (4′) | 1219mm (4′) | |
| 4’x3′ | 1219mm (4′) | 914mm (3′) | |
| 3’x5′ | 914mm (3′) | 1524mm (5′) | |
| 3’x4′ | 914mm (3′) | 1219mm (4′) |

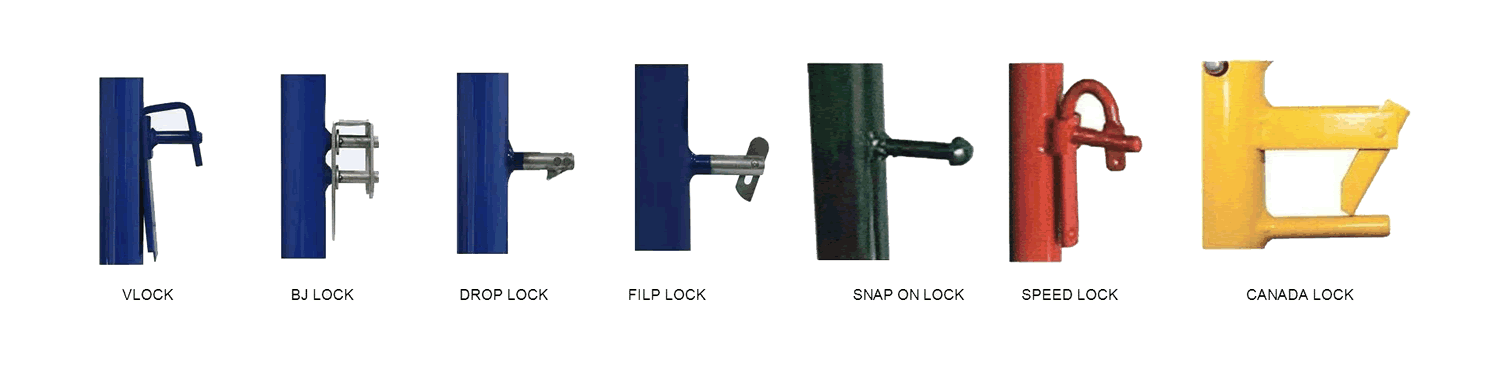

Various types of scaffolding lock

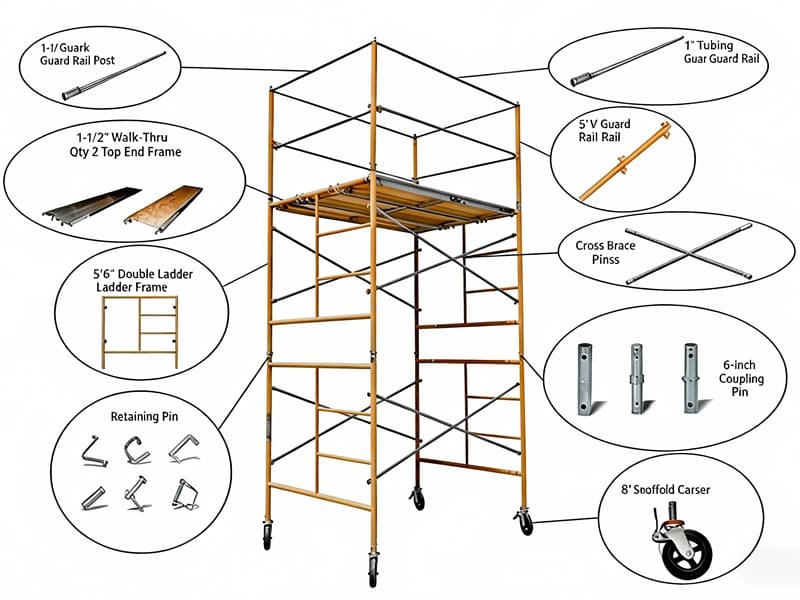

Accessories:
1）Cross brace:
Cross brace is used to keep buildings stable during events such as wind and earthquakes.
2）Joint Pin：
A scaffolding pin joint is a connection between two objects that allows only relative rotation about a single axis.
3）Galvanized Plank With Hook
Scaffolding steel plank is the main parts of scaffolding system which is convenient for workers to walk on high building, ensuring the safety of workers.
4）Horizontal brace：
Horizontal bracing is used to resist the horizontal/lateral loads on the structure and distribute them to the outer columns, thus entering the vertical stabilization system.
5）U Head Jack：
The main purpose of the U-head jack is to ensure that wooden beams and other similar components are held tightly in place while operating on all levels.
6）Jack Base
This base Jack adjusts the height of the scaffold and makes the whole scaffold more stable.
How to Use Frame Scaffolding？
First, place and level the base jack on solid ground. If the surface is uneven, use adjustable bases to make sure everything is stable.
Next, stand up the end frames and connect them with cross braces for support. Always check that the frames are perfectly vertical and securely fastened at the joints.
Then, add more cross braces throughout the structure to make the entire scaffold strong and rigid.
After that, position the plank at the required working height and lock them firmly onto the frames.
Finally, install safety features like guardrails and toe boards along all open sides and ends to prevent workers and tools from falling.
Frame Scaffolding’s Advantages
1.Modular Design:
Its modular nature allows for quick assembly, disassembly, and reconfiguration to meet specific project needs and site constraints.
2.Superior Stability:
The system offers exceptional stability and high load-bearing capacity, making it reliable for demanding applications.
3.Adaptable Configuration:
It is highly versatile and can be configured to various shapes, sizes, and heights, which is ideal for projects with irregular layouts or confined spaces.
4.Enhanced Safety:
Integrated safety features, including guardrails, toe boards, and cross-bracing, are standard components that help ensure a secure working platform.
5.Optimal Access:
It provides efficient access to all areas of a structure, streamlining construction, maintenance, and repair work.
Production process video

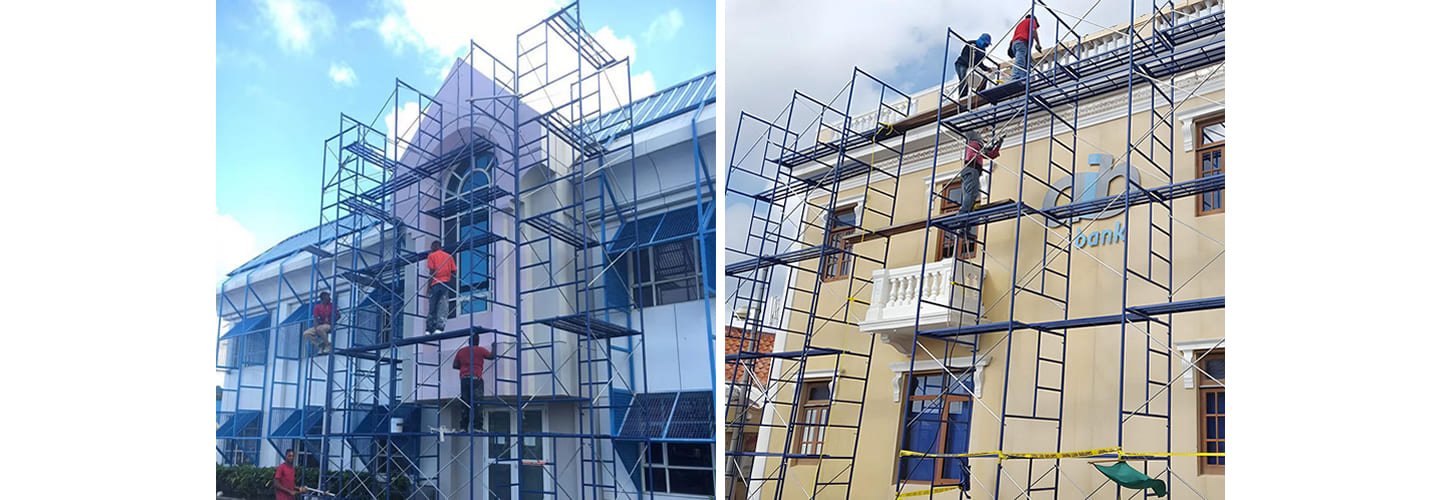

Frame Scaffolding Project Experience
Frame scaffolding is a versatile and widely used system suitable for various projects, from residential and commercial buildings to large industrial sites. It provides safe and stable access for tasks such as masonry, facade work, roofing, and general construction or maintenance, whether indoors or outdoors.

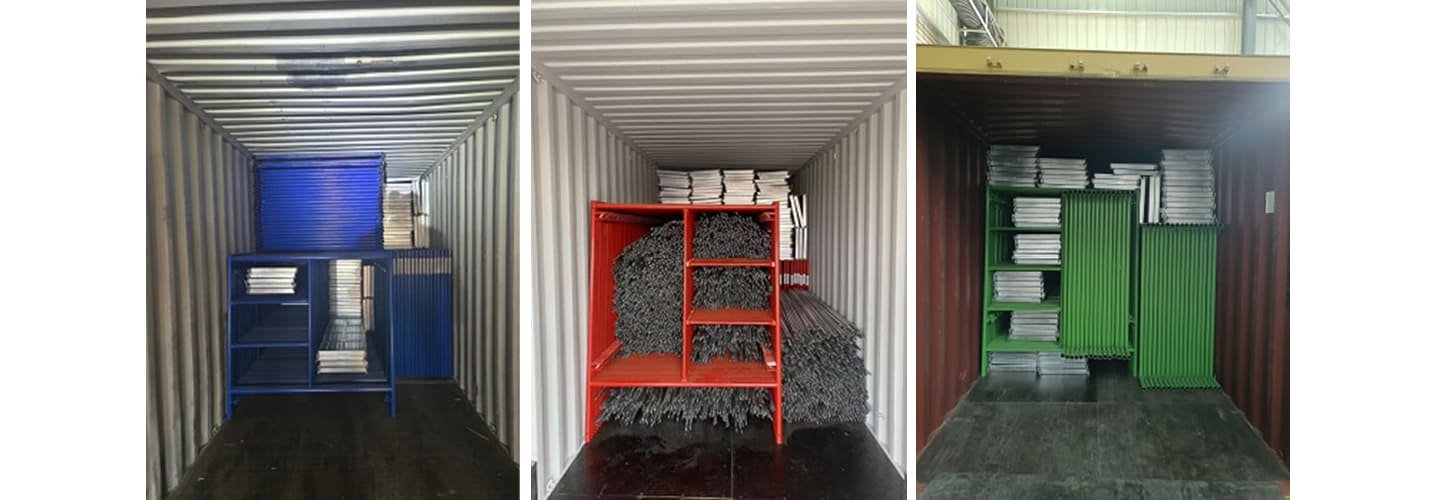

Package Of Frame Scaffolding
Metal frame scaffolding is typically bundled and stacked in an organized way for safe shipping and easy handling. Key parts like frames, cross braces, and accessories are securely strapped together, which also helps keep them sorted during setup. Protective covers are often used to prevent damage from weather or rough handling during transit, so the scaffolding arrives ready to be efficiently unloaded and assembled on-site.
Customers and Exhibitions

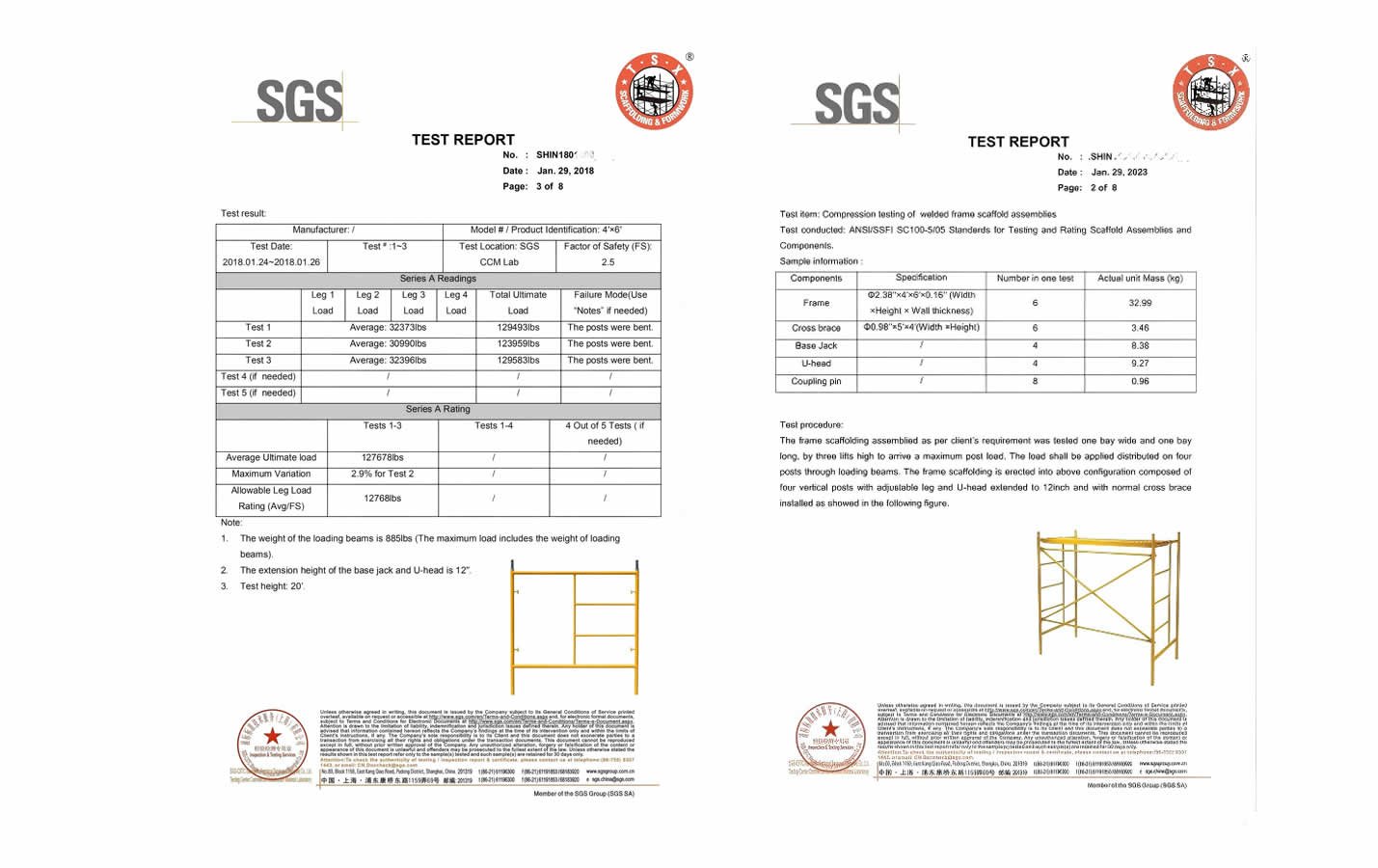

Test Report
Certificate
FAQ
Q1.How can I choose specifications about the Scaffold Products?
–You can tell us the height of your building or we can give you a suitable specification about the Scaffold Products based on our experience in your market.
Q2.Can I reuse Scaffold Products?
–Yes, of course. You can purchase the Scaffold Products once, and reuse them over 100 times. In other words, the reusable Scaffold Products will save you money and time again.
Q3.How does frame scaffolding differ from other types of scaffolding?
–Frame scaffolding consists of vertical frames and horizontal cross braces that create a rectangular frame. It’s characterized by its ease of assembly, versatility, and adaptability to various construction projects.
Q4.How is frame scaffolding assembled and disassembled?
–Frame scaffolding is typically assembled by stacking frames vertically and securing them with cross braces. Platforms or planks are then placed across the frames. Disassembly is done in the reverse order, starting from the top.
Q5: Do you provide installation guidance?
— Yes. We provide detailed installation manuals, video tutorials.
Q6.What are the surface treatment options and how to choose?
–We currently offer two excellent surface treatment options: Pre-galvanized and Powder Coating.
Q7.What kind of Service can you provide about the scaffold products?
–We offer our proposals, drawings of scaffold products, and quotations to the buyers or contractors of the construction projects.
Q8.How to get scaffold products quote?
–Send us inquiries or leave a message for the detailed scaffold products you need. The quotation will be sent as soon as possible based on your requirement accordingly.
Q9.What is the scaffold products delivery time?
–It depends on the scaffold products’ order quantity. Generally, the delivery time of the scaffold products will be around 15 to 35 days.
Q10.What are Quality Certifications can you provide for the Scaffold Products?
–We can provide ISO, SGS certifications, or as your request for the Scaffold Products.
