Products Description

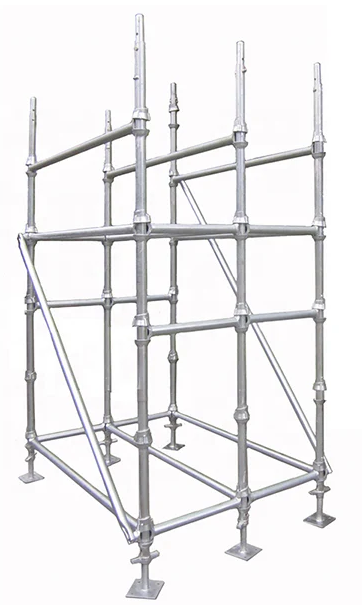

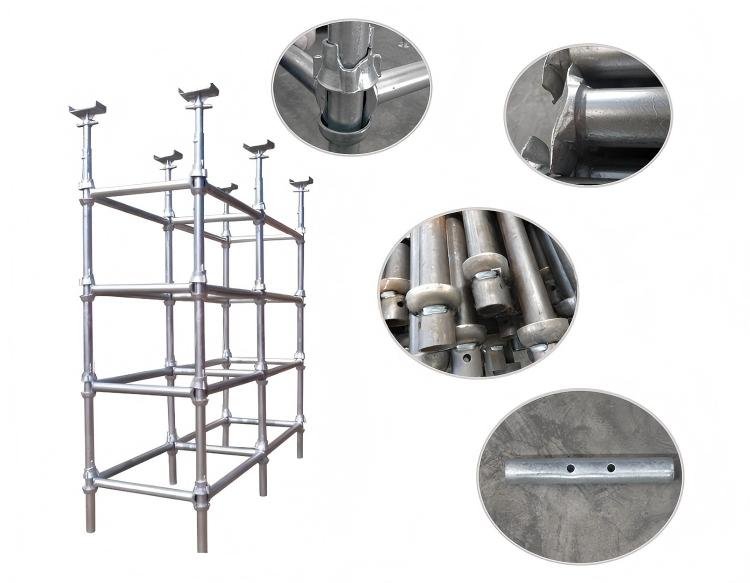

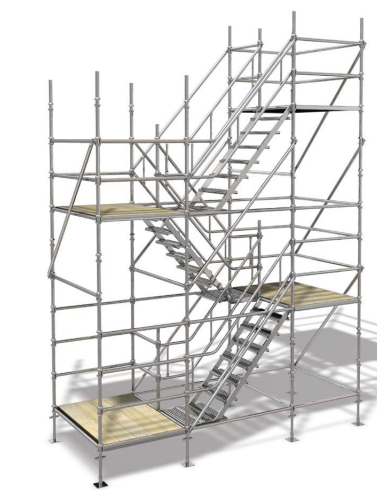

1.Cuplock Scaffolding Introduction
The Cuplock Scaffolding System is a multi-purpose steel scaffolding system designed for access scaffolding and heavy-duty load support in construction, infrastructure, and industrial projects.
As a reliable Cuplock scaffolding manufacturer and supplier, we provide high-quality systems suitable for both small and large-scale applications.
2.Specification
|
Product Name
|
Measurement
|
Thickness
|
Length
|
Material
|
Weight(kg)
|
Surface
|
|
Forged Standard
|
1500*48.3*3
|
3
|
1500
|
Q235
|
7.44
|
H.D.Galvanized
|
|
Forged Standard
|
1500*48.3*3.2
|
3.2
|
1500
|
Q235
|
7.77
|
H.D.Galvanized
|
|
Forged Standard
|
2000*48.3*3.2
|
3
|
2000
|
Q235
|
10.35
|
H.D.Galvanized
|
|
Forged Standard
|
2000*48.3*3.2
|
3
|
2000
|
Q355
|
10.35
|
H.D.Galvanized
|
|
Forged Standard
|
2500*48.3*3.2
|
3.2
|
2500
|
Q235
|
12.94
|
H.D.Galvanized
|
|
Forged Standard
|
3000*48.3*3
|
3
|
3000
|
Q235
|
14.86
|
H.D.Galvanized
|
|
Forged Standard
|
3000*48.3*3
|
3.2
|
3000
|
Q345
|
14.86
|
H.D.Galvanized
|
|
Spigot with nuts&bolts
|
250*38*3.2
|
3
|
250
|
Q235
|
0.73
|
H.D.Galvanized
|
|
Spigot with nuts&bolts
|
250*38*3
|
3.2
|
250
|
Q235
|
0.69
|
H.D.Galvanized
|
|
Spigot with nuts&bolts
|
250*38*3.2
|
3.2
|
250
|
Q235
|
0.82
|
H.D.Galvanized
|
|
Product Name
|
Measurement
|
Thickness
|
Length
|
Material
|
Weight(kg)
|
Surface
|
|
Forged Ledger
|
800*48.3*3
|
3
|
800
|
Q355
|
3.14
|
H.D.Galvanized
|
|
Forged Ledger
|
900*48.3*3
|
3
|
900
|
Q235
|
3.49
|
H.D.Galvanized
|
|
Forged Ledger
|
1200*48.3*3.2
|
3.2
|
1200
|
Q235
|
4.81
|
H.D.Galvanized
|
|
Forged Ledger
|
1300*48.3*3
|
3
|
1300
|
Q235
|
4.92
|
H.D.Galvanized
|
|
Forged Ledger
|
1800*48.3*3
|
3
|
1800
|
Q235
|
6.69
|
H.D.Galvanized
|
|
Forged Ledger
|
2500*48.3*3
|
3
|
2500
|
Q235
|
9.18
|
H.D.Galvanized
|
|
Forged Ledger
|
2500*48.3*3
|
3.2
|
2500
|
Q355
|
9.18
|
H.D.Galvanized
|
|
Intermediate Transom
|
1000*48.3*3.2
|
2.4
|
1000
|
Q355
|
5.28
|
H.D.Galvanized
|
|
Intermediate Transom
|
1300*48.3*3.2
|
3.2
|
1300
|
Q355
|
6.41
|
H.D.Galvanized
|
|
Intermediate Transom
|
1800*48.3*3
|
3.2
|
1800
|
Q355
|
7.91
|
H.D.Galvanized
|
|
Intermediate Transom
|
1800*48.3*3.2
|
3.2
|
1800
|
Q355
|
8.3
|
H.D.Galvanized
|
|
Intermediate Transom
|
2500*48.3*3
|
3
|
2500
|
Q355
|
10.4
|
H.D.Galvanized
|
|
Diagonal Brace
|
H1.5L1.8*48.3*3
|
3.2
|
H1.5L1.8
|
Q235
|
9.44
|
H.D.Galvanized
|
|
Diagonal Brace
|
H3.0L2.5*48.3*2.4
|
3
|
H3.0L2.5
|
Q235
|
12.33
|
H.D.Galvanized
|

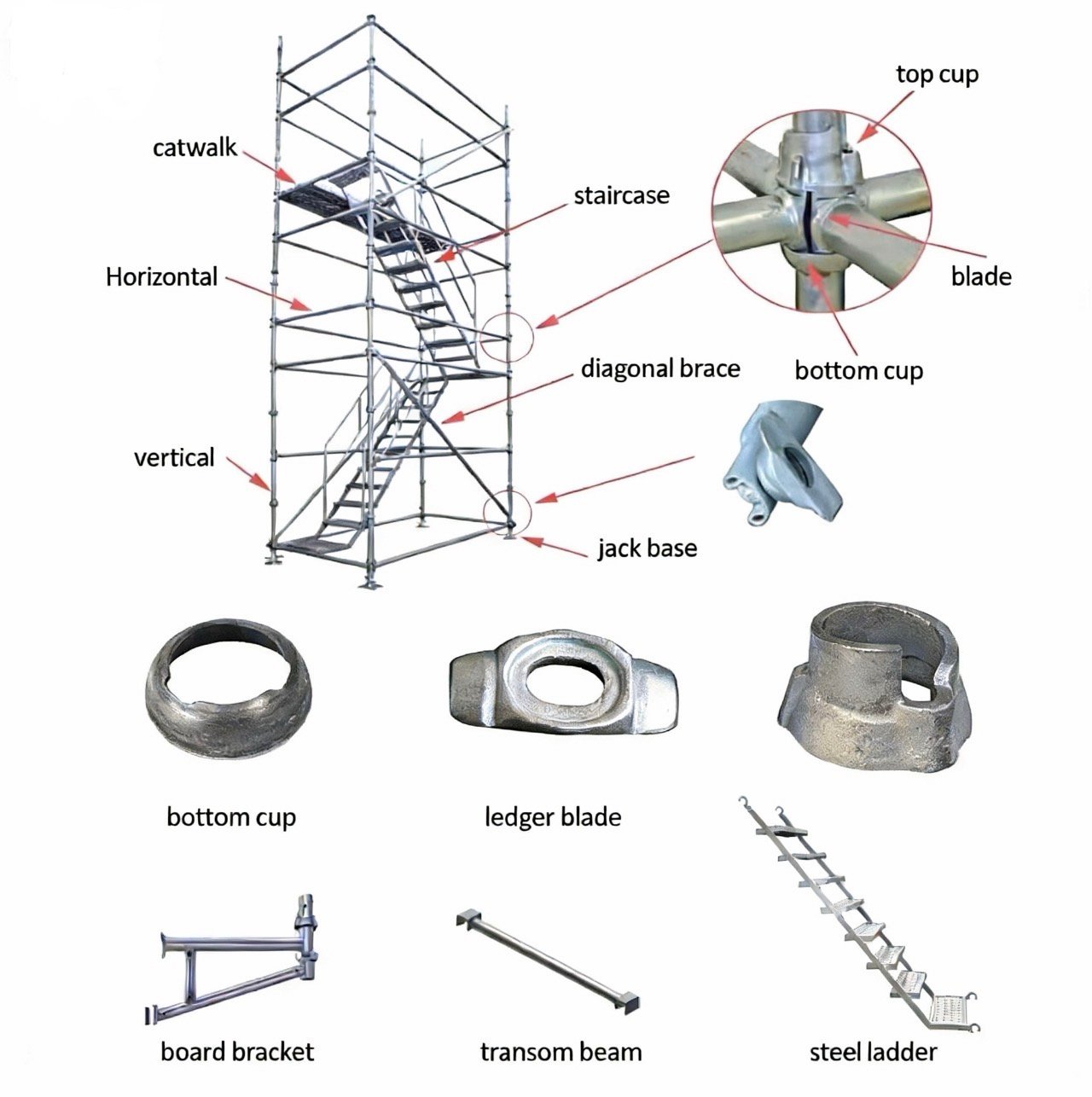

3.Cuplock Scaffolding Assembly

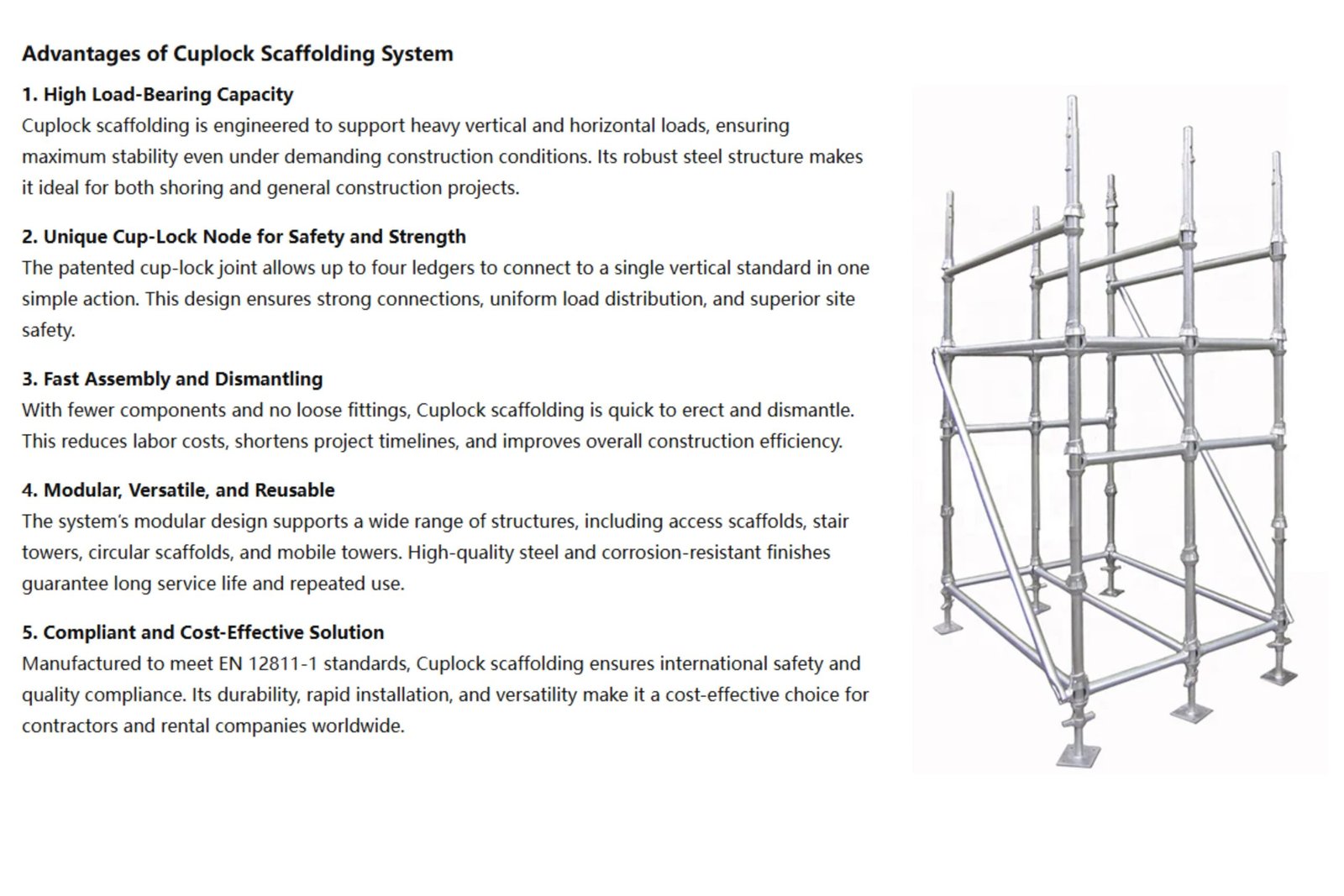

4.Advantages

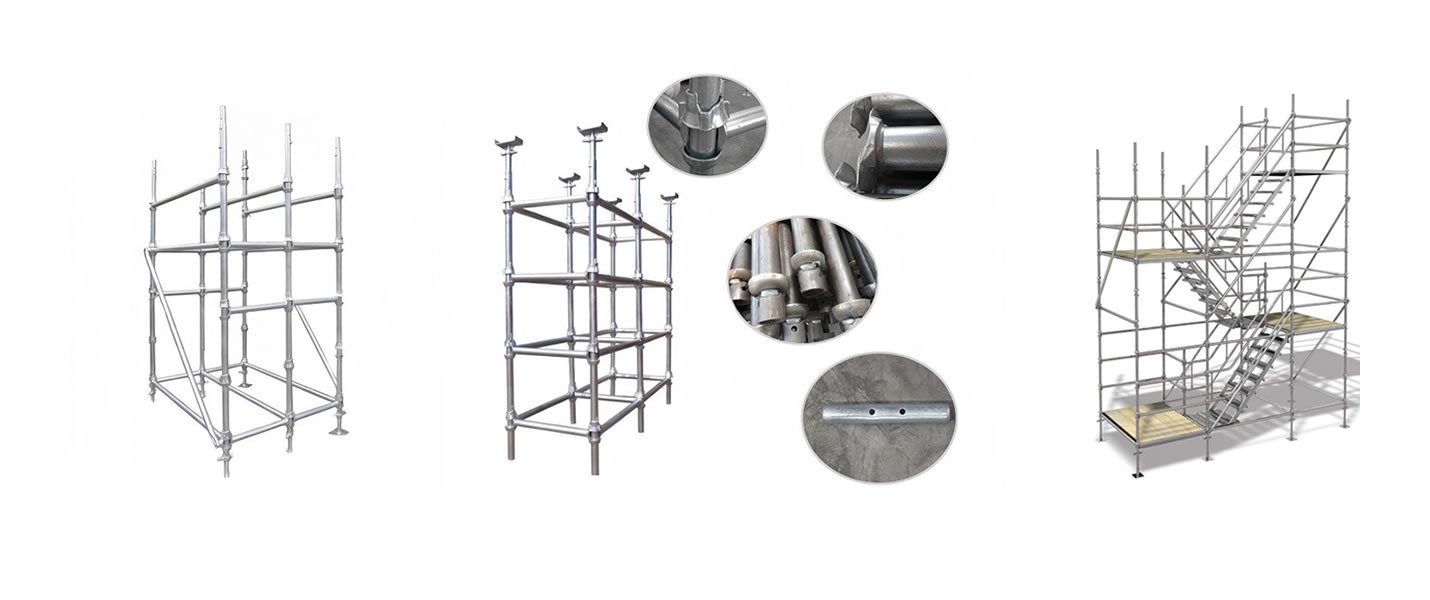

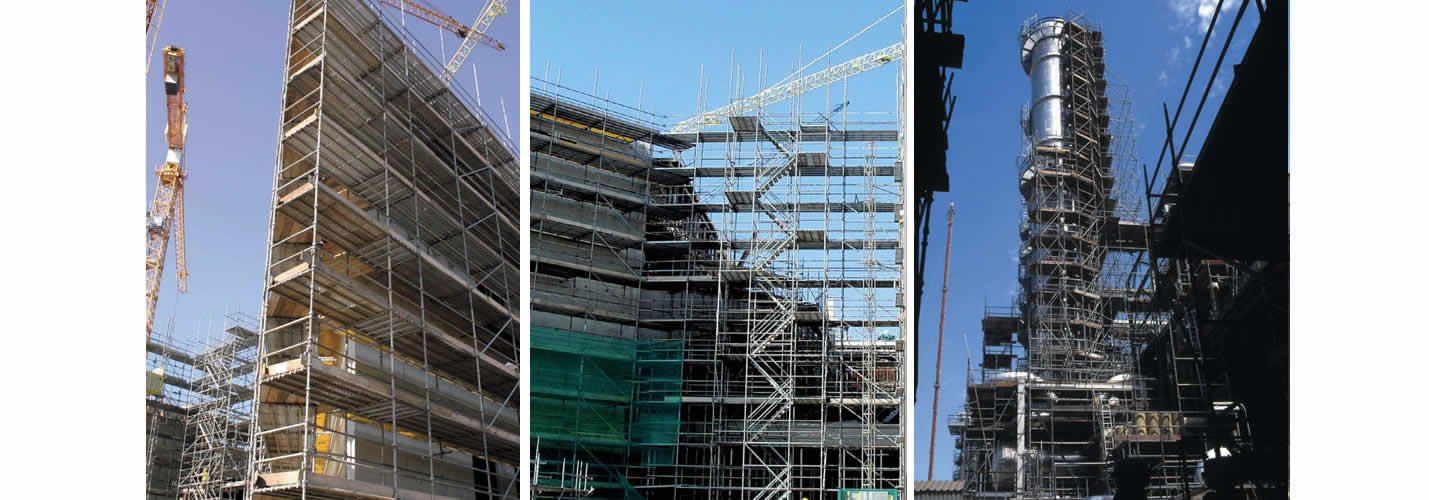

5.Application

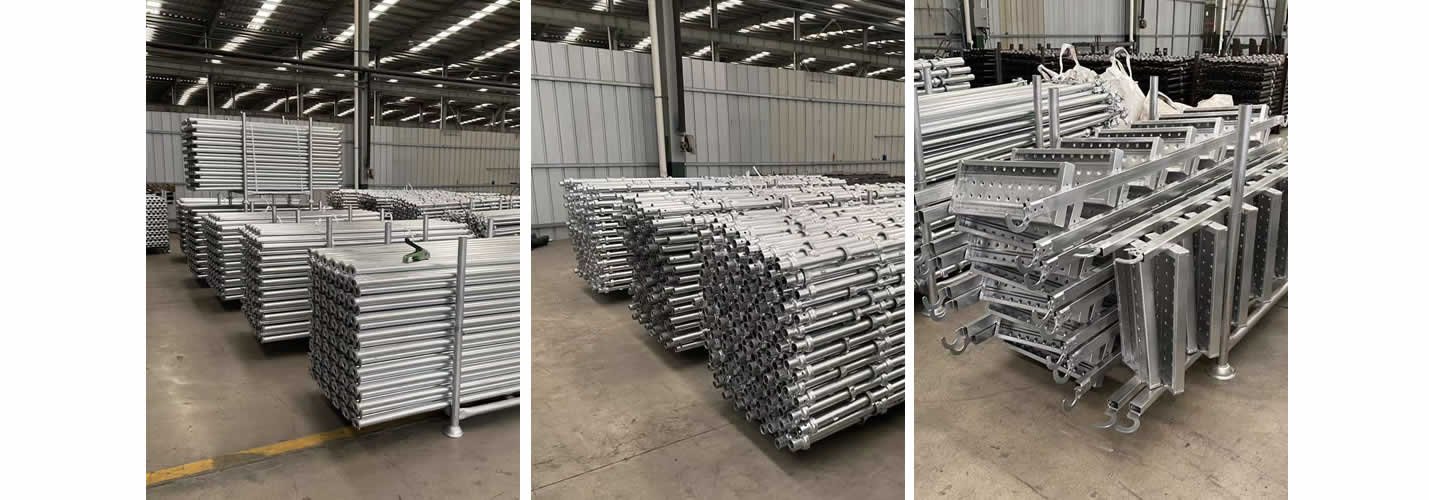

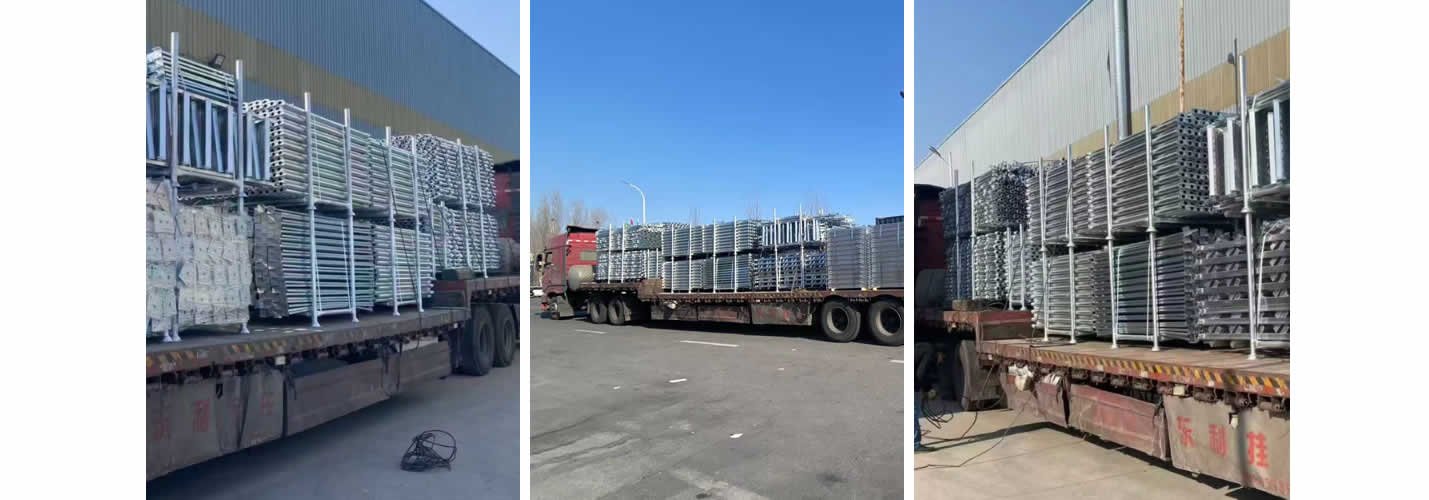

6.Packing&Shipping
7.Customer visit and Exhibition

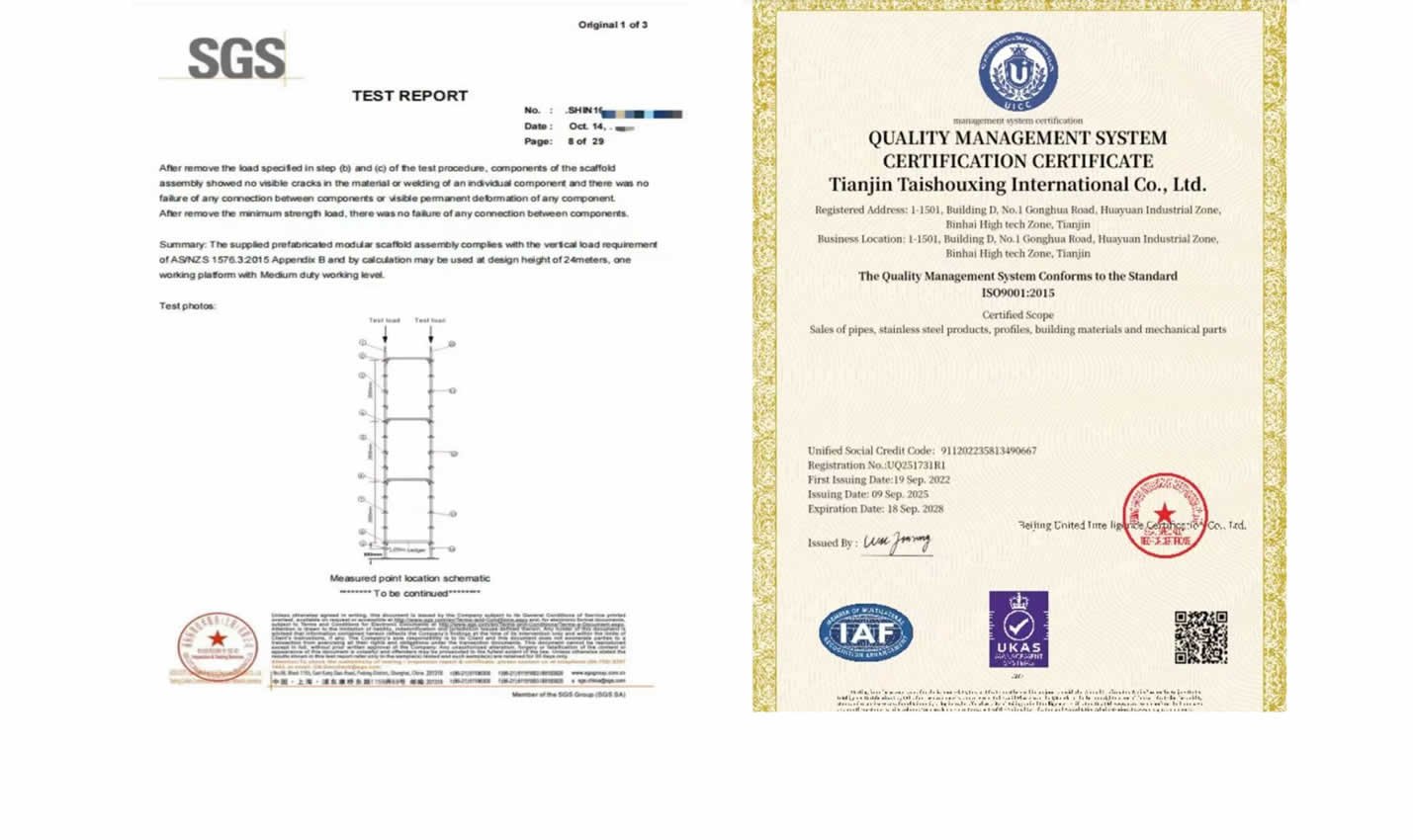

8.SGS Certificate
9.FAQ
Q1: What is Cuplock scaffolding?
A1:Cuplock scaffolding is a modular steel scaffolding system that uses a unique cup-lock node to connect vertical standards and horizontal ledgers, providing strong, stable, and efficient support for access and load-bearing applications.
Q2:What is the delivery time for Cuplock scaffolding?
A2:The standard delivery time for Cuplock scaffolding is 4–6 weeks after order confirmation and receipt of the deposit.
Q3: What payment terms do you offer for Cuplock scaffolding?
A3:We offer both FOB and CIF payment terms to meet different customer needs.
For FOB orders, the payment terms are 30% in advance and 70% upon container loading.
For CIF orders, the payment terms are 30% in advance and 70% upon presentation of a copy of the Bill of Lading.
Q4: What is Cuplock scaffolding used for?
A4:Cuplock scaffolding is widely used for access scaffolding, shoring support, staircase towers, circular scaffolds, and loading towers in building construction, infrastructure, and industrial projects.
Q5: What are the advantages of Cuplock scaffolding?
A5:Cuplock scaffolding offers high load capacity, fast installation, strong connections, excellent safety, and long service life, making it a highly cost-effective scaffolding solution.
Q6: Is Cuplock scaffolding suitable for heavy-duty applications?
A6:Yes. The Cuplock system is engineered to handle high vertical and horizontal loads, making it ideal for heavy-duty, high-rise, and large-scale construction projects.
Q7: How does the Cuplock system work?
A7:Up to four horizontal ledgers can be connected to one vertical standard using a single cup-lock action, creating quick, secure, and rigid connections without the need for bolts or loose fittings.
Q8: What standards does Cuplock scaffolding meet?
A8:Our Cuplock scaffolding system is manufactured in accordance with EN 12811-1, ensuring safety, structural performance, and compliance with international construction standards.
Q9:What material is Cuplock scaffolding made from?
A9:Cuplock scaffolding is made from high-quality structural steel, typically Q235 or Q345 (Q355 optional), providing excellent strength, durability, and load-bearing capacity.
Q10:Is Cuplock scaffolding easy to install?
A10:Yes. With fewer components and a simple locking mechanism, Cuplock scaffolding can be erected and dismantled much faster than traditional tube-and-coupler systems.
